12MM Pillow Block Bearing UCP201-12 MM

Name: 12MM Pillow Block Bearing UCP20112 MM
Brand: HOJE or OEM
Price: 0.1 USD

Place of Origin : China

Brand Name : HOJE or OEM

Model Number : UCP201-12

Price : 0.1$

Packaging Details : industrial package

Delivery Time : 7says

Payment Terms : T/T, L/C,D/P,Western Union,Paypal,Money Gram,etc

Supply Ability : 10000 pcs/month

MOQ : 100 pcs

Certification : ISO 9001:2008

Contact Now

UCP201-12MM
UCP201-12MM has a combination of a cast iron pillow block housing with an anti-rotation device with self-alignment and a set screw locking chrome steel insert bearing with a slinger seal design. This specific unit is a standard duty pillow block bearing with a wide inner ring and two set screws and a cast iron unit with the standard base to center height with a grease fitting.
UCP200 Series Pillow Block Bearing is equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to lock and attach to the shaft.
Common usage for UCP200 Series Pillow Block Bearing include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.

Attributes	Values
Units	mm
Bearing Type	Extended inner race with set screws
Dynamic Load Rating (Cr)	12,843
Static Load Rating (Cor)	6,668
Shaft Dia. (Fw)	12.0000
Shaft Height (h)	30.2000
Housing Width (b)	38.0000
Mounting Hole Center-to-Center (e)	95.0000
Housing Length (a)	127.0000
Mounting Slot Length (S2)	19.0000
Mounting Slot Width (S1)	13.0000
Housing Base Thickness (g)	12.0000
Housing Height (w)	60.0000
Bearing Inner Race Width (Bi)	31.0000
Bearing Inner Race Width - Short Side (n)	12.7000
Bearing Inner Race Width - Extended Side (m)	18.3000
Mounting Bolt Size	10.0000
Bearing Number	UCP 201
Housing Number	P 203
Shaft Dia., Nominal (d)	12.0000
Weight (g)	635.00
Material	Cast iron housing, chrome steel bearing

Product Tags:

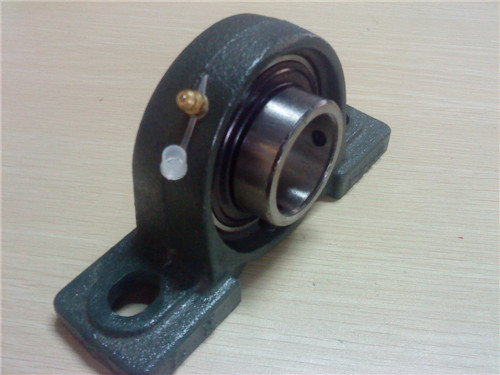

12MM Pillow Block Bearing UCP201-12 MM Images
